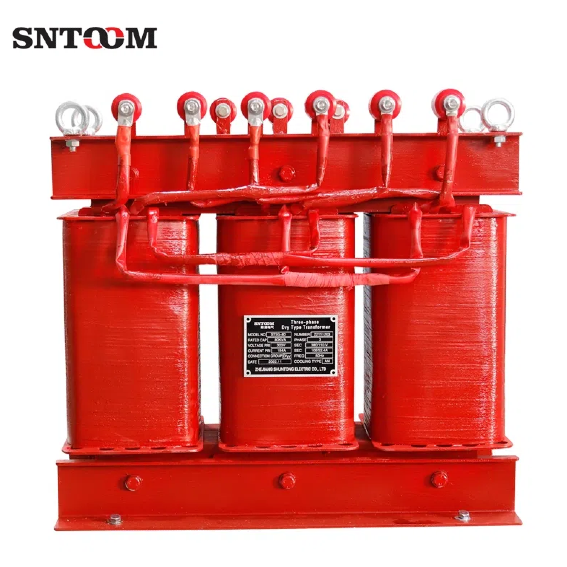

Power transformers are essential components of modern electrical systems, allowing electricity to flow from power plants to homes and businesses in a safe and efficient manner. They step up or step down the voltage of electrical power, ensuring that energy can be transmitted over long distances without excessive losses. However, no transformer is perfectly efficient. Some energy is inevitably lost as heat, sound, and electromagnetic radiation. Understanding what affects transformer efficiency and how energy losses occur is important for reducing costs, enhancing grid reliability, and making power systems more sustainable.
This article will explore the key factors that affect the efficiency of power transformers, the types of energy losses that occur during transformer operation, and ways to improve transformer performance. It will also highlight the importance of managing transformer efficiency for the future of energy systems.
Transformer efficiency refers to how effectively a transformer converts input energy (electricity) into output energy without wasting it. Ideally, a transformer would deliver the exact same amount of energy that it receives, but in reality, there are always some losses due to resistance, heat, and other factors. Efficiency is typically very high in modern transformers—often above 98%—but even small losses can accumulate over time and have a significant impact on overall system performance.
When discussing transformer efficiency, we generally focus on two key types of losses: core losses (iron losses) and copper losses (load losses). These losses occur as the transformer operates, and they differ depending on several factors, such as load conditions, transformer design, and environmental influences.
Several factors contribute to the overall efficiency of a transformer. These include the design of the transformer, the quality of materials used, the load it is carrying, and the operating conditions. Let's explore each of these factors in more detail:
Core losses are caused by the magnetic field that is created when alternating current (AC) flows through the transformer’s primary winding. This magnetic field induces a current in the transformer’s core, leading to energy dissipation as heat. Core losses can be broken down into two components:
Hysteresis Loss: This is the energy lost as the transformer’s core material magnetizes and demagnetizes in response to the changing direction of the AC supply. The energy required to reorient the magnetic domains within the core material results in heat, which contributes to loss.
Eddy Current Loss: As the alternating magnetic field changes direction, it induces circulating currents in the transformer’s core material. These currents, known as eddy currents, generate heat and cause energy loss.
Core losses are typically constant and occur regardless of the transformer’s load. This means that even when the transformer is not delivering any power (i.e., during no-load operation), some energy is still lost in the core.
Copper losses, also referred to as load losses, occur in the transformer’s windings. The copper windings of the transformer carry the current that flows between the primary and secondary coils. Because copper has some resistance, when current passes through the copper windings, some energy is lost as heat due to the resistance of the copper.
Copper losses increase as the load on the transformer increases. When the transformer is under full load, the current flowing through the windings is at its maximum, resulting in higher losses. In contrast, when the transformer is operating at low load levels, copper losses are lower, as less current is flowing through the windings.
Unlike core losses, which are relatively constant, copper losses vary depending on the transformer’s load. Transformers that are oversized or operated under light loads for long periods may experience higher relative copper losses.
Leakage flux refers to the portion of the magnetic flux that does not contribute to the transfer of energy between the primary and secondary windings of the transformer. This flux results in stray losses, which occur when the magnetic field does not efficiently link the two windings.
Stray losses can occur in various parts of the transformer, including the core, the tank, the insulation, and other components. These losses are generally minor compared to core and copper losses but can still contribute to the overall inefficiency of the transformer.
The load condition of a transformer has a significant impact on its efficiency. Transformers operate most efficiently when they are close to their rated load, as this minimizes both copper and core losses. However, in practice, transformers are often oversized or operate under partial load conditions, leading to suboptimal efficiency.
Under light load conditions, the core loss becomes a significant proportion of the total losses, since the copper losses remain low due to the reduced current flow. Conversely, at full load, copper losses increase significantly because the current is higher, but core losses remain constant. Therefore, it’s important to balance the load on transformers to optimize their overall efficiency.
A transformer’s temperature has a direct impact on its efficiency. As the transformer operates, it generates heat, which must be dissipated to prevent damage. High temperatures can cause the resistance of the copper windings to increase, resulting in higher copper losses. In addition, elevated temperatures can degrade the insulation material, which may reduce the transformer's lifespan and performance.
To maintain optimal efficiency, transformers are equipped with cooling systems that use either oil or air to dissipate heat. If the cooling system is inadequate or the transformer operates in a very hot environment, its efficiency can drop due to increased temperature and associated losses.
The design of the transformer, including the quality of materials used in its construction, plays a critical role in its efficiency. The choice of core material, such as silicon steel or amorphous steel, can affect core losses. Higher-quality materials tend to have lower hysteresis and eddy current losses, improving the overall efficiency of the transformer.
Similarly, the copper used for the windings must be of high quality to reduce resistance and minimize copper losses. The geometry of the transformer, including the shape and configuration of the core and windings, also influences how efficiently energy is transferred between the primary and secondary sides.
Over time, transformers can lose efficiency due to wear and tear, insulation degradation, and the accumulation of dust or contaminants. Regular maintenance is crucial for ensuring that transformers operate at peak efficiency. Common maintenance tasks include cleaning, inspecting the insulation, and replacing worn-out components.
An older transformer that has not been properly maintained may experience higher losses and reduced performance. Therefore, ensuring that transformers are properly maintained and replaced at the end of their service life can help minimize energy waste and improve efficiency.
The energy losses in a transformer can be categorized into two main types:
No-Load Losses (Core Losses): These losses occur when the transformer is not supplying power to any load, simply due to the magnetizing effect of the core material. These losses remain constant regardless of the transformer’s load and are typically caused by hysteresis and eddy currents.
Load Losses (Copper Losses): These losses are directly related to the current flowing through the transformer’s windings. They are proportional to the square of the current, which means they increase as the transformer operates under higher loads.
Both types of losses contribute to the overall inefficiency of the transformer. Reducing both core and copper losses is key to improving transformer efficiency.
While some losses are unavoidable, several strategies can help improve the efficiency of transformers and reduce energy waste:
Optimize Load Conditions: Transformers operate most efficiently when they are close to their rated load. Using appropriately sized transformers and ensuring that they are not underutilized or overburdened can help minimize copper losses.
Use High-Quality Materials: Upgrading transformers to use higher-quality core materials, such as amorphous steel, can reduce core losses. Additionally, using low-resistance copper in the windings can help minimize copper losses.
Enhance Cooling Systems: Improving the cooling system can help maintain an optimal operating temperature, reducing losses caused by overheating. Better cooling systems extend the lifespan of the transformer and prevent heat-related efficiency losses.
Regular Maintenance and Monitoring: Conducting regular maintenance and inspections ensures that transformers are operating efficiently. This includes checking the condition of the insulation, cleaning components, and replacing worn-out parts.
Invest in Energy-Efficient Transformers: Modern transformer designs incorporate better materials, improved cooling systems, and optimized configurations to reduce losses. Upgrading to energy-efficient transformers can significantly lower energy waste and improve the overall performance of the electrical grid.
Power transformer efficiency is a critical factor in ensuring the reliability, cost-effectiveness, and sustainability of electrical systems. Core losses, copper losses, stray losses, and other factors all contribute to the overall energy loss in a transformer. By understanding these factors and taking proactive steps to optimize transformer performance, we can reduce energy waste and enhance the efficiency of power systems.
Modern advancements in materials, design, and maintenance practices have significantly improved transformer efficiency, but ongoing efforts are necessary to further reduce losses and improve grid performance. By implementing strategies such as proper load optimization, quality material use, and routine maintenance, the electrical industry can ensure that transformers continue to deliver power efficiently for years to come.
