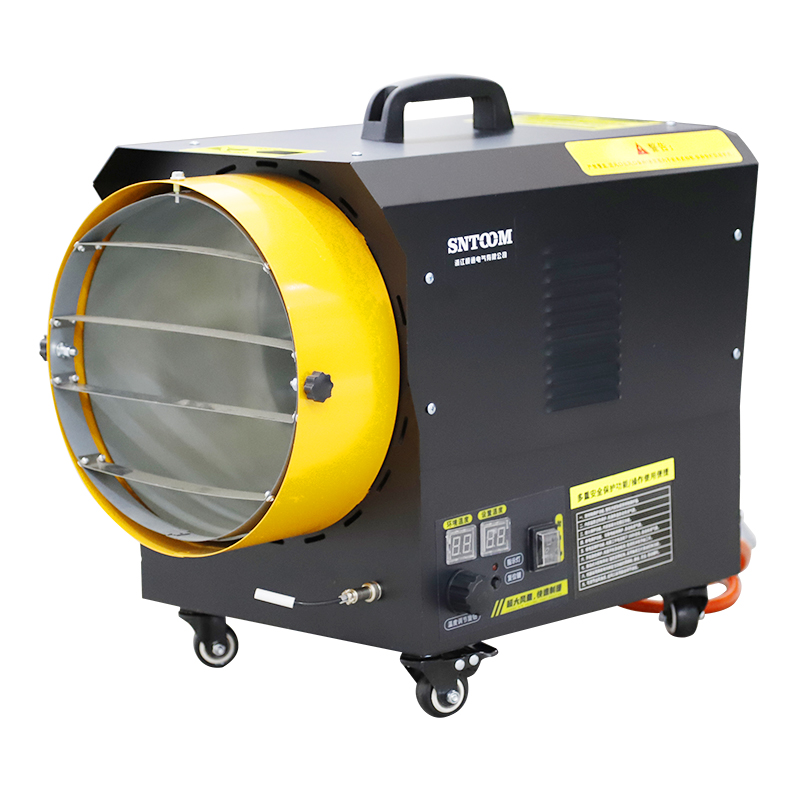

MGQ
SNTOOM
Product advantages and features
Versatile Use & Robust Design
Efficient Heating

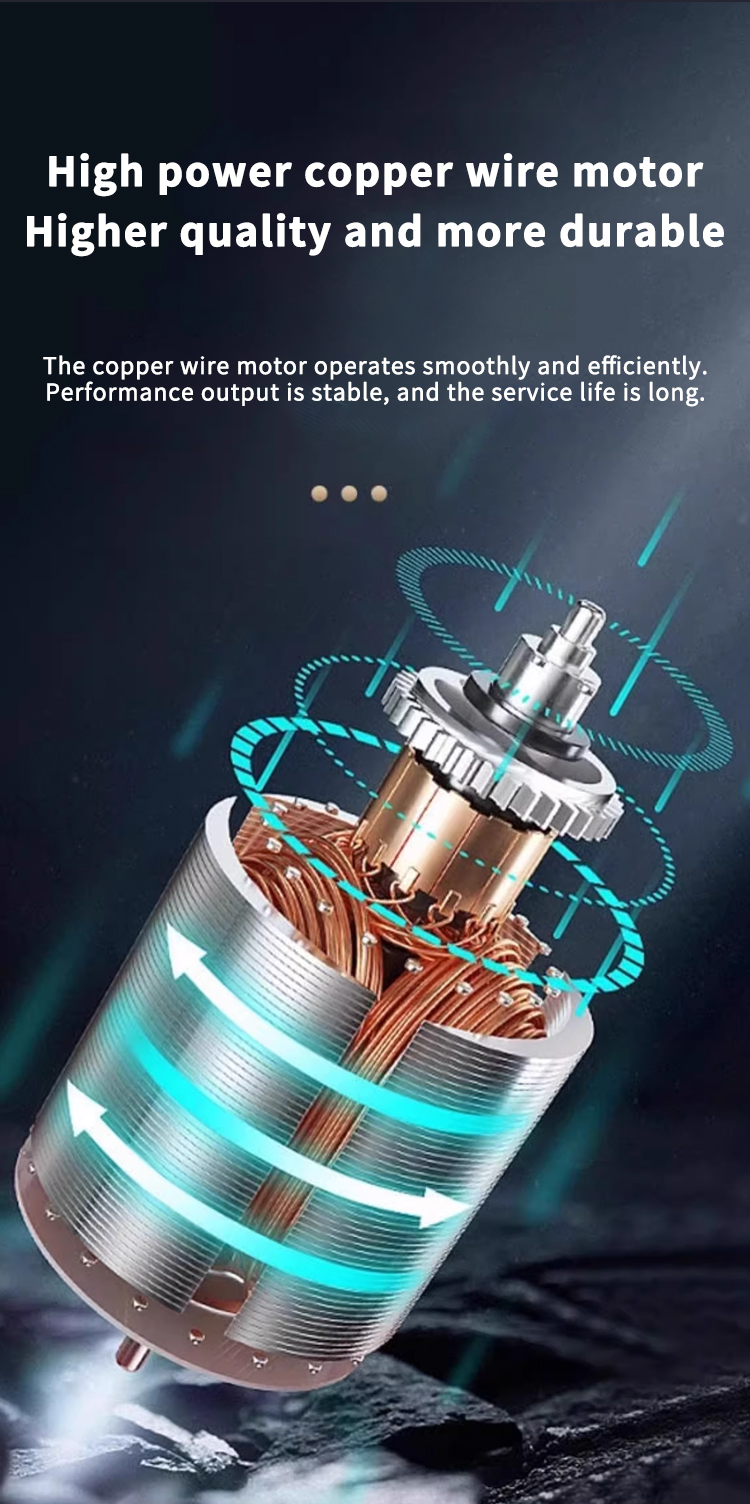

High-Quality Motor

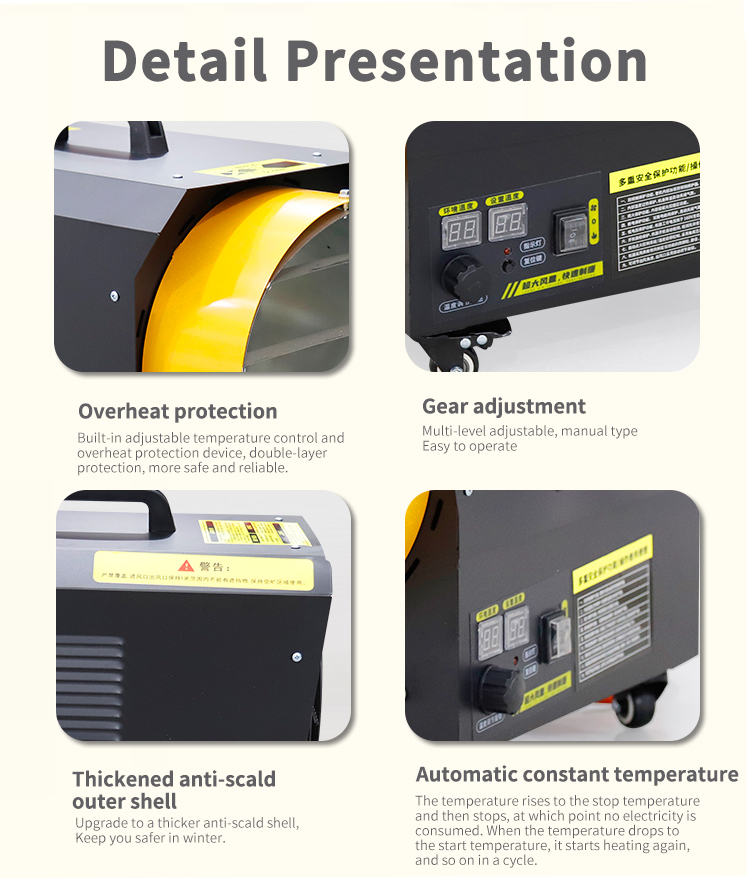

Advanced Safety Features
Precise Temperature Control

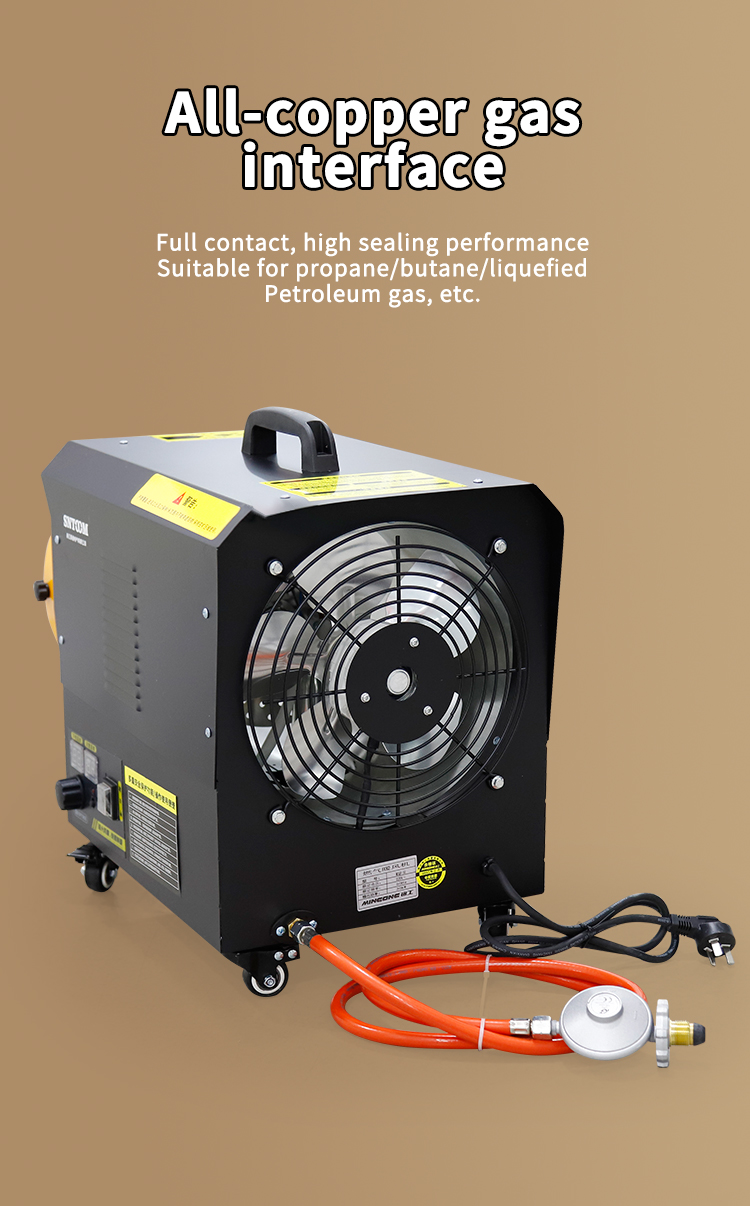

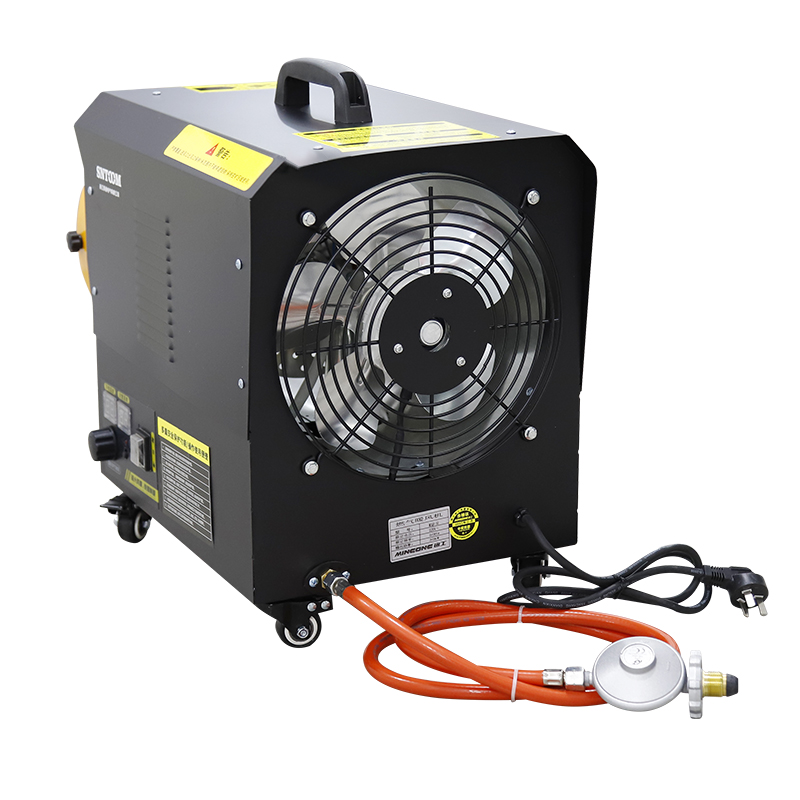

All-Copper Gas Interface
Installation and Instructions
Unpack the MGQ series warm air blower and check all components against the manual to ensure nothing is missing or damaged.
Place the heater on a stable, level surface with adequate ventilation, ensuring it's away from any flammable materials.
Connect the gas supply pipe to the all-copper gas interface, ensuring a secure and tight fit to prevent any gas leaks.
Plug the power cord into a suitable electrical outlet, making sure the voltage and frequency match the specifications of the heater.
Adjust the gear settings as needed, then turn on the heater and check for proper operation, ensuring heat output is as expected
Note:For the MGQ series warm air blower, ensure it's operated in well-ventilated areas to prevent gas buildup. Regularly check for gas leaks, avoid flammable materials nearby, and never leave unattended while in use.

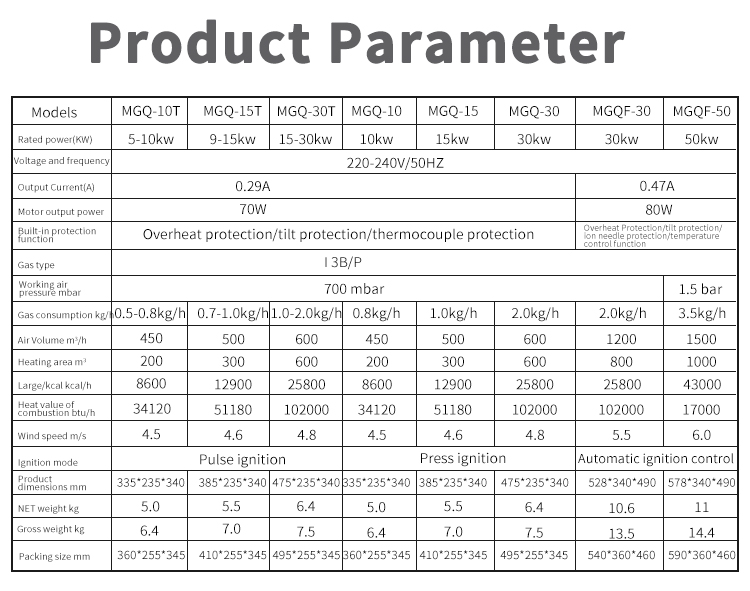

Product parameters
| Models | MGQ-10T | MGQ-15T | MGQ-30T | MGQ-10 | MGQ-15 | MGQ-30 | MGQF-30 | MGQF-50 |
| Rated power(kW) | 5-10kW | 9-15kW | 15-30kW | 10kW | 15kW | 30kW | 30kW | 50kW |
| Voltage and frequency | 220-240V/50HZ | |||||||
| Output Current(A) | 0.29A | 0.47A | ||||||
| Motor output power | 70W | 80W | ||||||
| Built-in protection function | Overheat protection/tilt protection/thermocouple protection | Overheat Protection/tilt protection/flame-out protection/temperature control function | ||||||
| Gas type | 13B/P | |||||||
| Working air pressure mbar | 700mbar | 1.5bar | ||||||
| Gas consumption kg/h | 0.5-0.8kg/h | 0.7-1.0kg/h | 1.0-2.0kg/h | 0.8kg/h | 1.0kg/h | 2.0kg/h | 2.0kg/h | 3.5kg/h |
| Air Volume m³/h | 450 | 500 | 600 | 450 | 500 | 600 | 1200 | 1500 |
| Heating area m³ | 200 | 300 | 600 | 200 | 300 | 600 | 800 | 1000 |
| Large/kcal kcal/h | 8600 | 12900 | 25800 | 8600 | 12900 | 25800 | 25800 | 43000 |
| Heat value of combustion btu/h | 34120 | 51180 | 102000 | 34120 | 51180 | 102000 | 102000 | 17000 |
| Wind speed m/s | 4.5 | 4.6 | 4.8 | 4.5 | 4.6 | 4.8 | 5.5 | 6.0 |
| Ignition mode | Pulse ignition | Press ignition | Automatic ignition control | |||||
| Product dimensions mm | 335*235*340 | 385*235*340 | 475*235*340 | 335*235*340 | 385*235*340 | 475*235*340 | 528*340*490 | 578*340*490 |
| NET weight kg | 5 | 5.5 | 6.4 | 5 | 5.5 | 6.4 | 10.6 | 11 |
| Gross weight kg | 6.4 | 7.0 | 7.5 | 6.4 | 7.0 | 7.5 | 13.5 | 14.4 |
| Packing size mm | 360*255*345 | 410*255*345 | 495*255*345 | 360*255*345 | 410*255*345 | 495*255*345 | 540*360*460 | 590*360*460 |

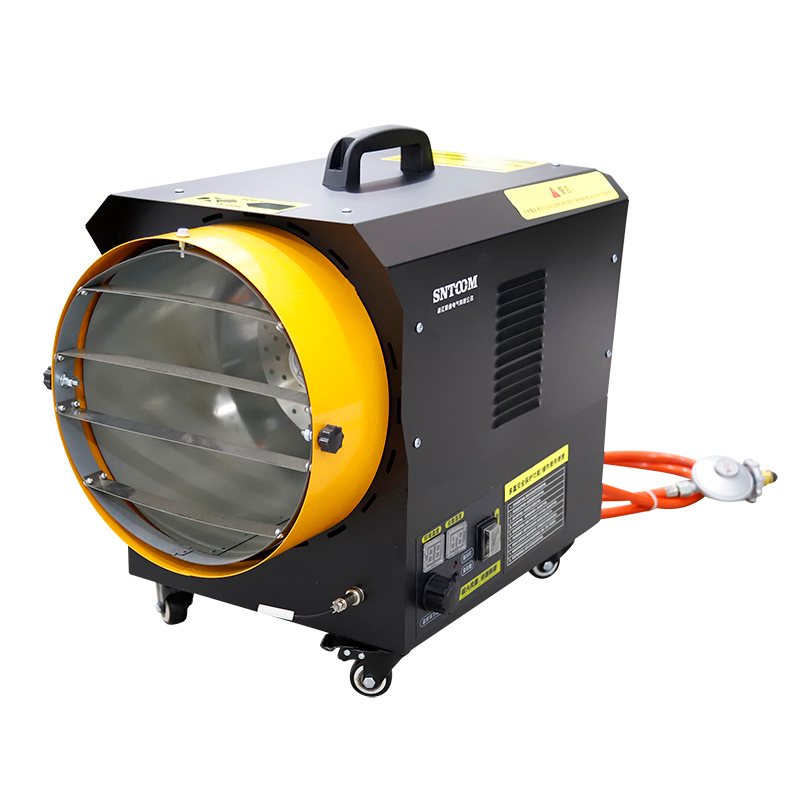

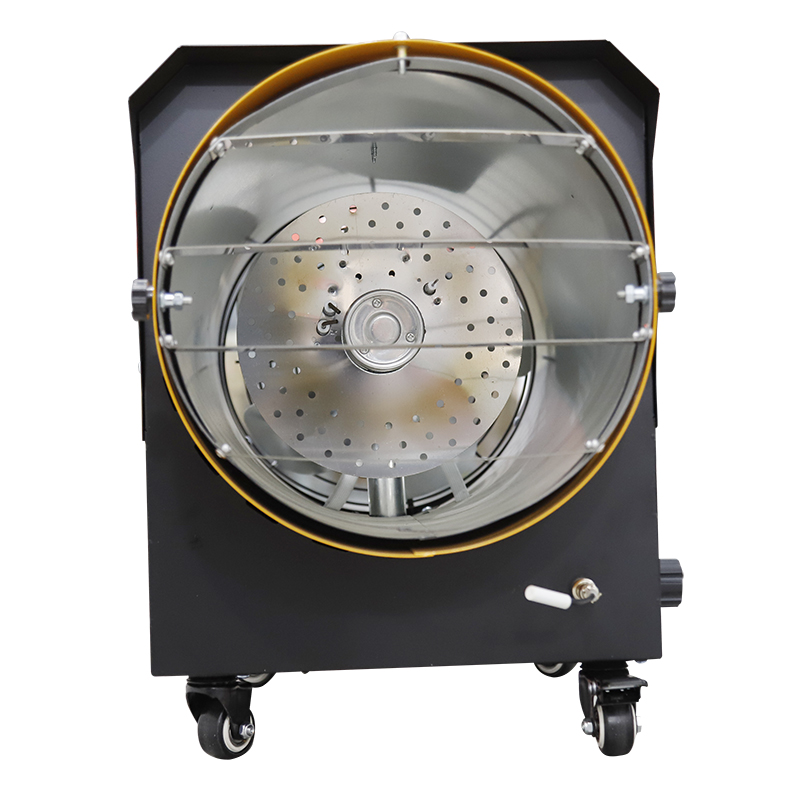

MGQ Series Warm Air Blower: The Ultimate Heating
Solution for Industrial and Household Use
The MGQ series warm air blower is a versatile and efficient heating solution designed to meet various needs. As an Industrial Heater, it offers robust performance in commercial and industrial settings, providing reliable warmth even in large spaces. Its durable construction ensures longevity, making it an ideal choice for workshops, warehouses, and other demanding environments.
For home users, this series doubles as a household energy saving heater. Its advanced design optimizes energy consumption, reducing electricity or gas costs while maintaining a comfortable indoor climate. This makes it not only eco-friendly but also budget-conscious.
One of the standout features of the MGQ series is its rapid heating capability. As a fast heating fan, it quickly disperses warm air, ensuring almost immediate comfort upon activation. This is particularly beneficial during cold winter mornings or chilly evenings.
With its high power output, the High Power Heater can efficiently heat extensive areas. Whether used in spacious living rooms or commercial premises, it guarantees consistent and effective heating performance.
As an Indoor heater, the MGQ series is both safe and user-friendly. It incorporates multiple safety features, such as overheat protection and sturdy anti-scald housing, ensuring peace of mind during operation. Additionally, its compact and mobile design allows for easy relocation, adapting to different room layouts and heating requirements.
Overall, the MGQ series warm air blower is a comprehensive heating solution that combines efficiency, safety, and versatility, making it a top choice for both industrial and household applications.
