European Industrial Manufacturing Base 10kV Power Distribution Project — SCB10-8000/10 Dry-Type Transformer

▎Overview

This project delivers an SCB10-8000/10 cast resin dry-type power transformer (8000 kVA, 10 kV / 6.3 kV) for a European industrial manufacturing base. The unit features three-phase red epoxy resin cast coils and forced-air cooling (AF), designed for safe operation in indoor substations, compact stations and fire-sensitive sites. Compared with oil-immersed types, dry-type transformers are oil-free, leak-free and self-extinguishing, making them ideal for high-capacity, high-occupancy and space-limited environments.

• Location/Country: Europe

• Model/Capacity/Voltage: SCB10-8000/10 (8000 kVA, 10 kV/0.4 kV, according to nameplate)

• Customer/Project Name: European Industrial Manufacturing Base 10kV Power Distribution Project, self generated project name. If you need the real customer name, please replace it directly

▎Requirements

Customers face the following needs and challenges in the construction of industrial power distribution systems:

• Fire safety: The power distribution room is located inside the factory building and requires equipment to be oil-free, flame-retardant, and self extinguishing to eliminate the risk of fire spread.

• Environmental adaptation: Indoor space is limited, and equipment needs to be compact, low-noise, and resistant to moisture and pollution.

• Reliable operation: It is necessary to meet the requirements of three-phase balanced power supply and short-term overload capacity to ensure continuous and stable production.

• Convenient maintenance: It is required that the equipment structure be simple, daily maintenance free, and reduce operation and maintenance costs.

▎Solution

Zhejiang Shuntong Electric provides a complete set of SCB10-8000/10 epoxy resin cast dry-type transformer solutions:

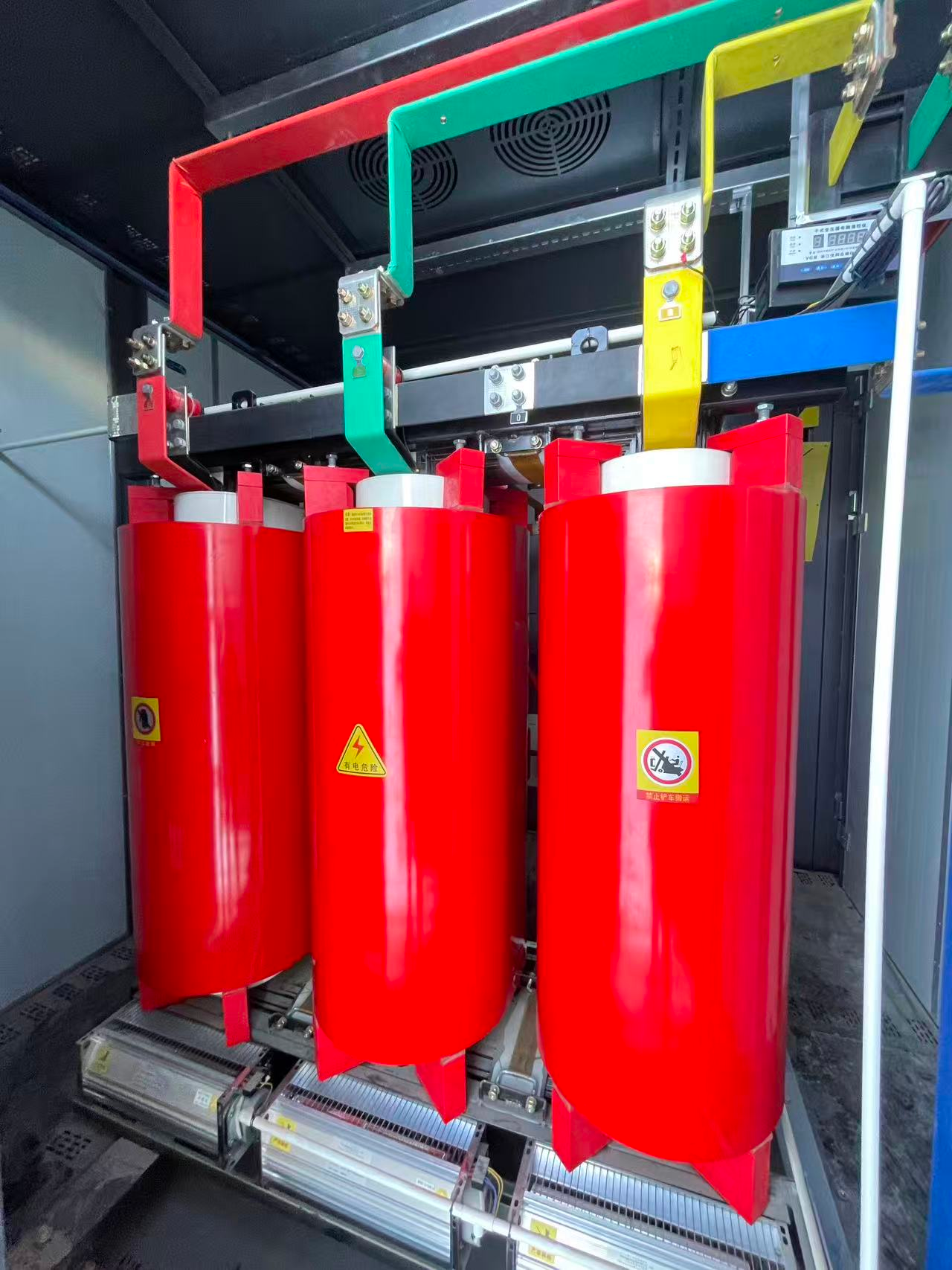

• Three phase casting winding: using epoxy resin vacuum casting technology, the red, green, and yellow color busbars are clearly marked with A/B/C three-phase, with excellent insulation performance and low partial discharge.

• Forced air cooling system: The bottom is equipped with an axial flow fan, and the temperature controller automatically starts and stops according to the winding temperature to ensure stable heat dissipation under full load and overload conditions.

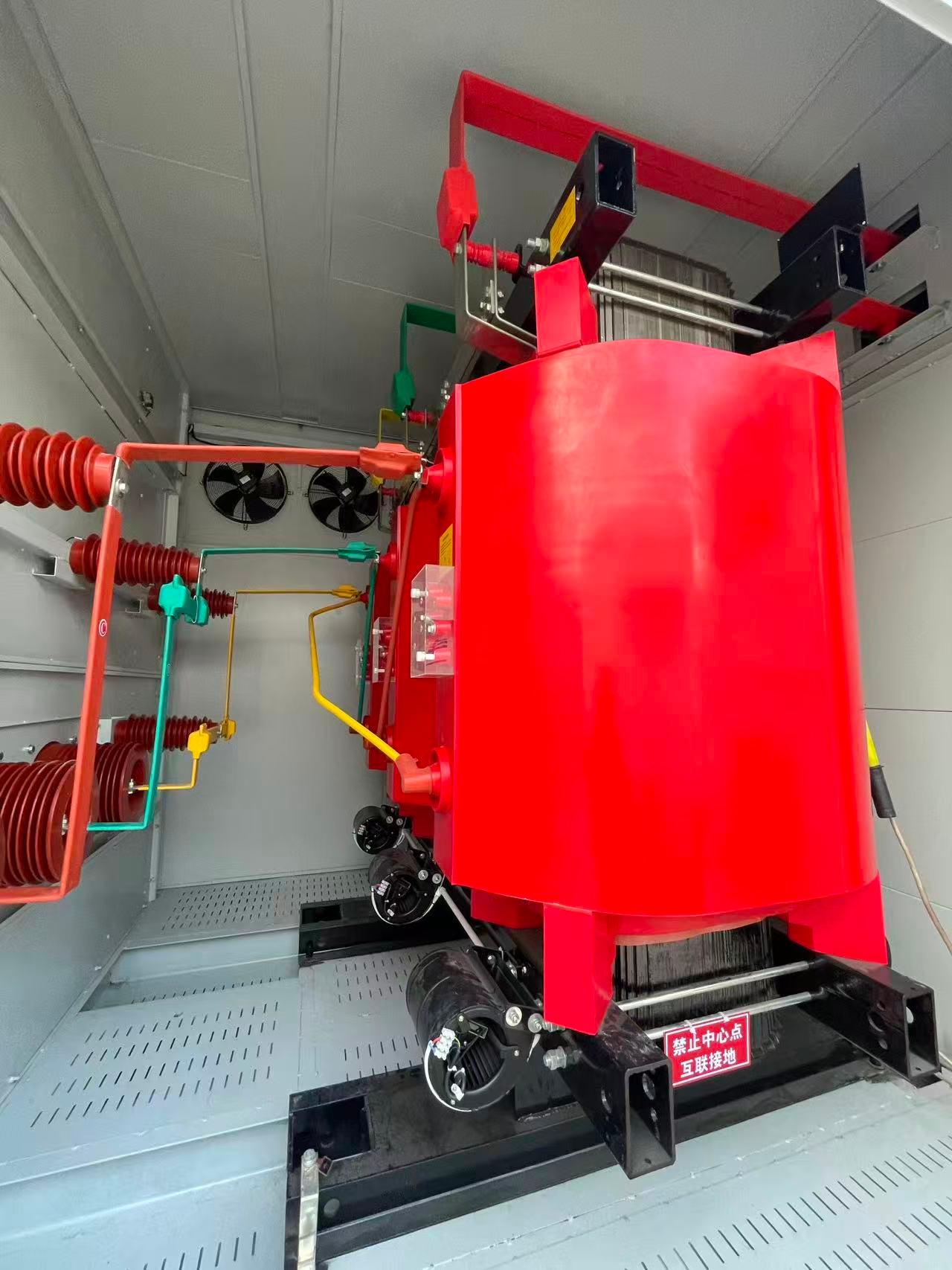

• Closed installation: Suitable for metal shell/cabinet installation, with effective air ducts formed by top ventilation and bottom air intake, and a protection level that meets indoor operation requirements.

• Safety signs and protection: Install "Danger of Electricity" warning signs, prohibit forklift handling signs, and insulated protective covers to comply with on-site safety regulations.

▎Implementation

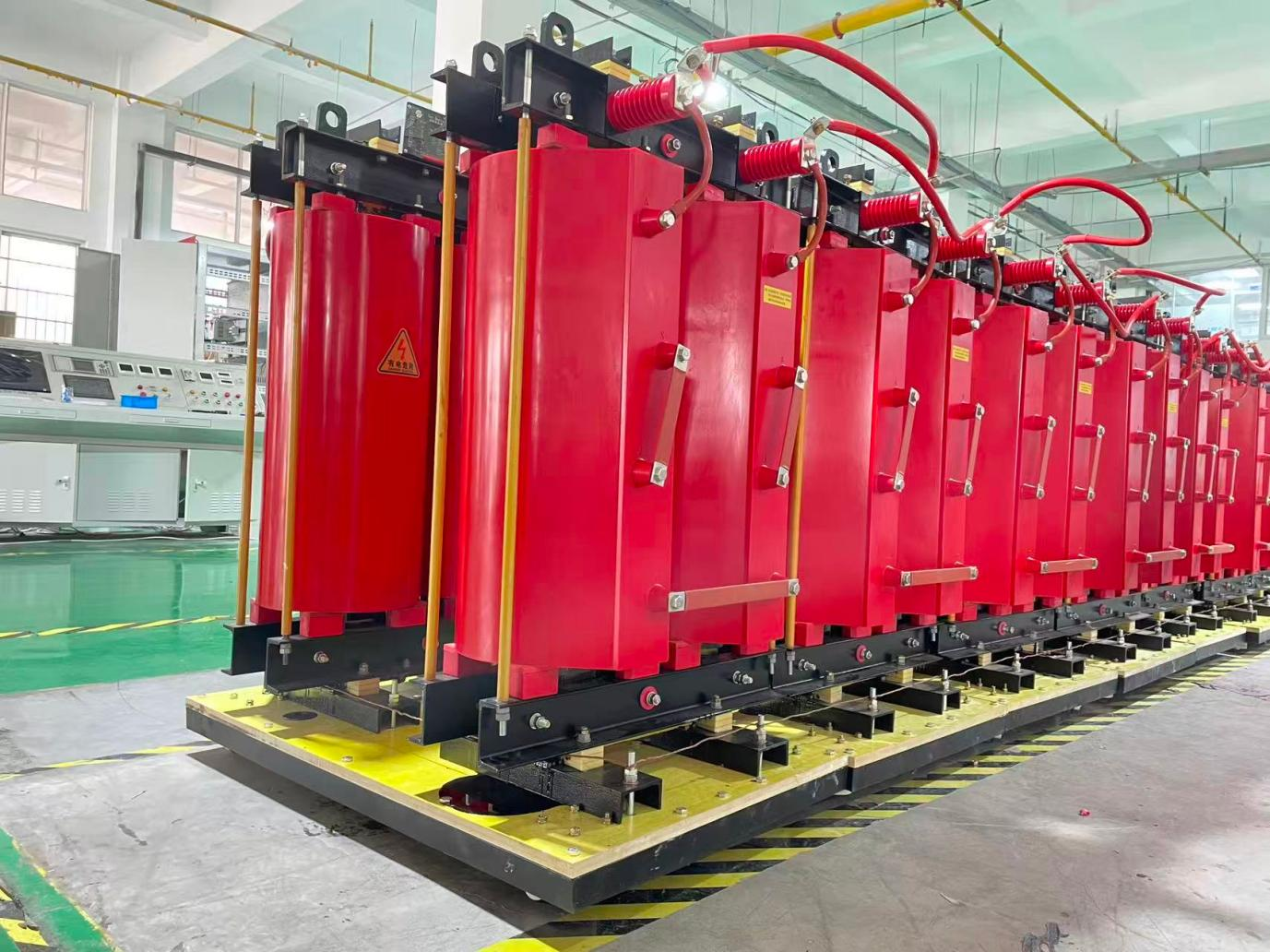

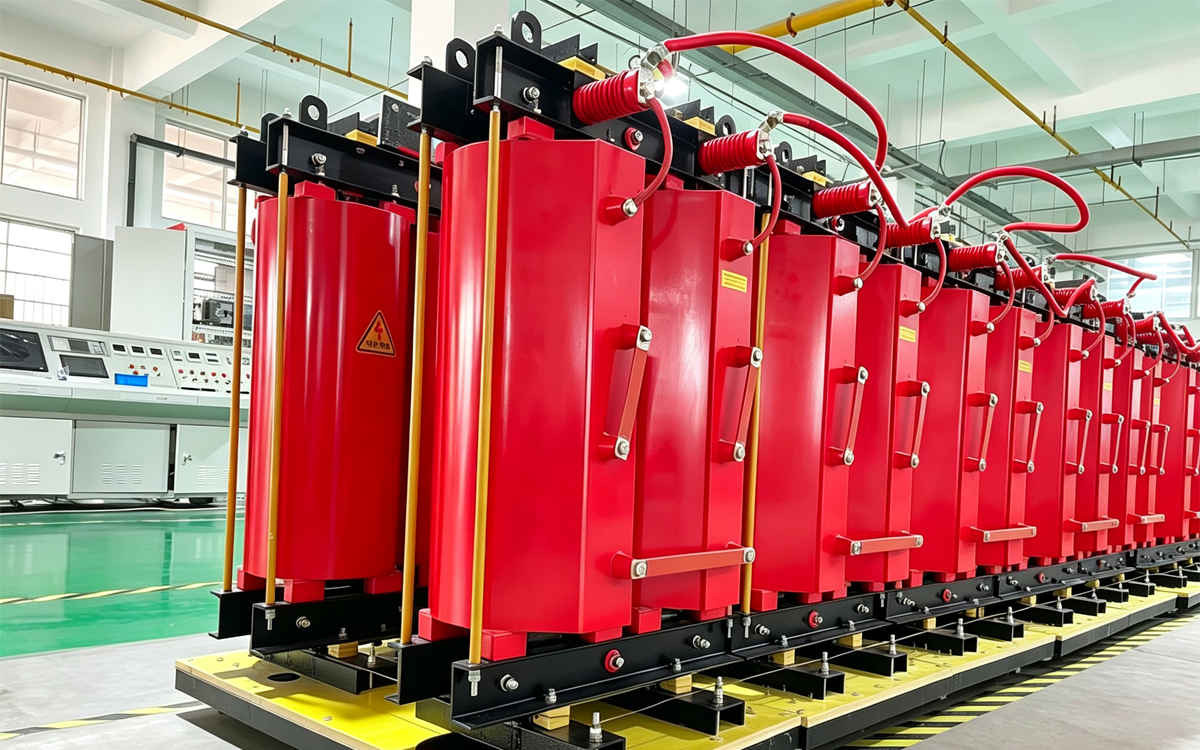

• Production and manufacturing: Complete winding casting, core stacking, assembly, and electrical testing in the factory (Figure 2 shows the production/testing line for rows of transformers).

• Factory inspection: Complete factory tests such as insulation resistance, withstand voltage, transformation ratio, and no-load/load loss to ensure that the parameters meet the standards.

• Delivery and installation support: Transport the entire machine to the site, provide installation technical guidance such as foundation positioning, busbar connection, and air cooling system debugging.

• Debugging and commissioning: Cooperate with customers to complete power transmission debugging and temperature protection linkage testing, confirm normal operation, and deliver for use.

▎Value Delivered

• Safety improvement: oil-free, self extinguishing and flame-retardant, fundamentally eliminating the hidden dangers of oil immersed equipment fires and oil leaks.

• Stability enhancement: Low partial discharge+strong overload capacity, ensuring continuous and stable three-phase power supply, reducing unplanned shutdowns.

• Operation and maintenance optimization: maintenance free structure+automatic temperature control air cooling, significantly reducing daily inspection and maintenance costs.

• Environmentally friendly: oil-free, pollution-free, low-noise, in line with green industry and indoor installation environmental protection requirements.
