SCB-13
SNTOOM

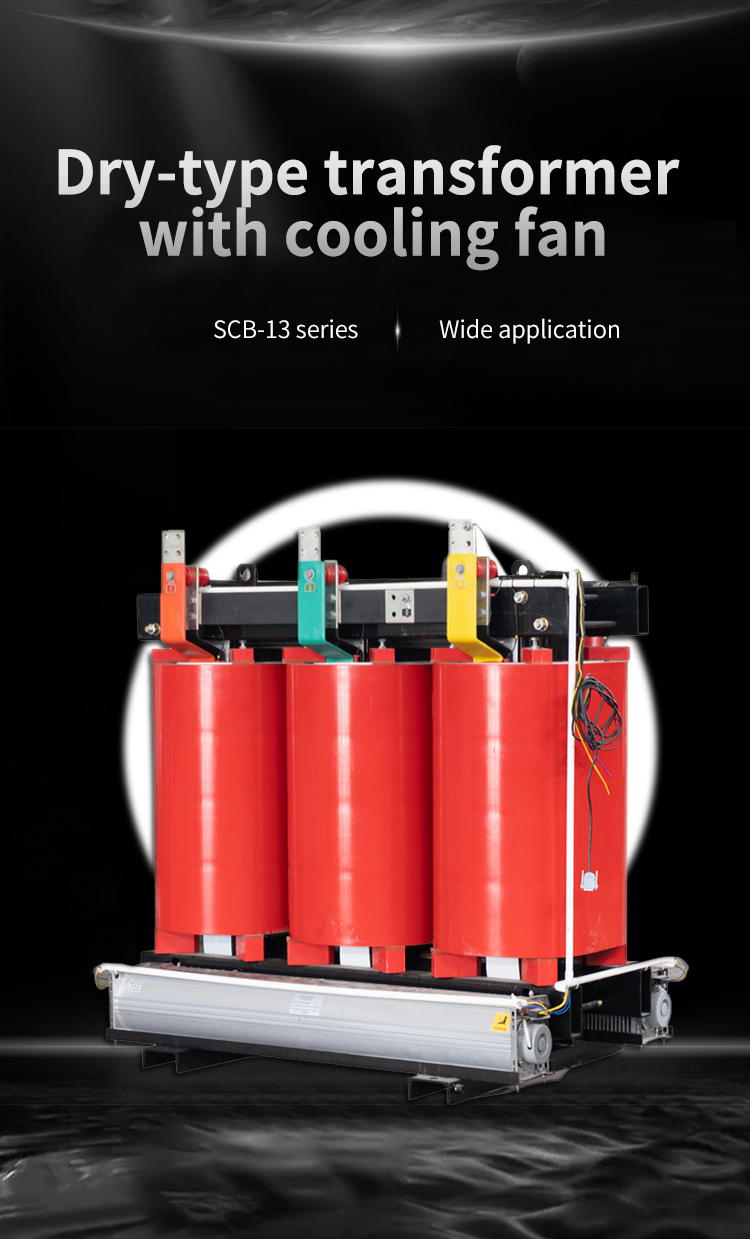

Product Introduction
The SCB-13 series Epoxy Dry Transformer is an advanced electrical device designed for efficient power distribution. It is constructed using high-quality materials such as Class F coil insulated copper wire, glass fiber, and epoxy resin composite. This transformer is known for its excellent insulation properties, self-extinguishing characteristics, and high-temperature resistance.
Usage
The SCB-13 series Epoxy Dry Transformer is specifically designed for various power distribution applications. It is commonly used in industrial settings, commercial buildings, and power stations to efficiently distribute electrical energy. This transformer is suitable for both indoor and outdoor installations, providing reliable and safe power supply.
Advantages
The SCB-13 series Epoxy Dry Transformer offers several advantages that make it a superior choice for power distribution needs. Firstly, it is constructed using Class F coil insulated copper wire as a conductor. This ensures efficient power transmission and reduces energy losses, resulting in improved overall performance.
Secondly, the transformer is insulated with glass fiber and epoxy resin composite materials. This combination provides excellent insulation properties, making it suitable for high-voltage applications. Additionally, the epoxy resin has self-extinguishing properties, ensuring that the transformer does not continue to burn and does not produce toxic gases. This makes it environmentally friendly and safe to use.
Furthermore, the manufacturing process of the SCB-13 series Epoxy Dry Transformer is highly precise and controlled. The winding is done on a high-accuracy winding machine, and cast grass fiber is carefully placed around the winding to create air passages for efficient cooling. The entire casting and solidifying process is monitored and adjusted through computer networks, ensuring a bubble-free and hole-free winding. This precise manufacturing process guarantees the reliability and longevity of the transformer.
In conclusion, the SCB-13 series Epoxy Dry Transformer is a reliable and efficient solution for power distribution needs. Its use of high-quality materials, excellent insulation properties, and precise manufacturing process make it the ideal choice for various applications. Choose the SCB-13 series Epoxy Dry Transformer for its superior performance, safety features, and environmental friendliness.
Key Features
Epoxy Resin Casting: The transformer core and windings are encapsulated in high-quality epoxy resin, providing exceptional insulation and protection against environmental factors. This ensures long-term durability and minimal maintenance requirements.
Three-phase Configuration: The three-phase design ensures balanced power delivery, reducing energy losses and maximizing system efficiency. It is ideal for medium- to high-voltage applications requiring stable and reliable power supply.
11kv Rated Voltage: With a rated voltage of 11kv, this transformer is suitable for a variety of distribution and transmission systems, making it a versatile solution for multiple industries.
Dry Type Construction: Unlike oil-filled transformers, our dry type transformer eliminates the risk of oil leakage and fire hazards. This not only reduces maintenance costs but also enhances overall safety.
High Efficiency: Equipped with advanced coil design and materials, our transformer achieves high efficiency, reducing energy consumption and lowering operating costs.
Excellent Thermal Management: Integrated with efficient cooling mechanisms, the transformer maintains optimal operating temperatures, ensuring continuous and reliable performance.
Comprehensive Protection: Featuring overload and over-temperature protection, the transformer automatically shuts down in case of abnormal conditions, protecting itself and the connected equipment from damage.
Compliance & Certifications: Our Epoxy Resin Cast 11kv Three-phase Dry Transformer complies with international standards such as IEC60076 and is CE certified, ensuring the highest levels of safety and quality.
Technical Specifications
Rated Voltage: 11kv
Frequency: 50/60Hz
Phase: Three-phase
Insulation Class: H-Class
Cooling Method: AN/AF
Vector Group: Dyn11
Temperature Rise: 125K
Enclosure: IP20/IP23
Winding Material: Copper/Aluminum
Core Material: Silicon Steel
Insulation Level: As Per IEC Standard
Applications
Our Epoxy Resin Cast 11kv Three-phase Dry Transformer is ideal for use in a wide array of applications, including:
Power distribution networks
Industrial facilities
Commercial buildings
Renewable energy projects (e.g., solar and wind farms)
Mining and metallurgical industries
Transportation systems
Utility substations
Packaging & Delivery
Packaging: The transformer is carefully packaged in a wooden pallet or wooden case to ensure safe transportation.
Delivery: We offer timely delivery worldwide, utilizing reliable logistics partners.
Conclusion
The Epoxy Resin Cast 11kv Three-phase Dry Transformer from our company is a reliable and efficient solution for your power distribution needs. With its advanced features, robust construction, and compliance with international standards, it is the perfect choice for a wide range of applications. Contact us today to learn more about our products and services.
