SCB9-1000KVA/11KV 0.4KV Dry Type Power Transformer
Product Introduction
Resin-insulated dry-type transformers are safe, non-flammable, fireproof, and pollution-free. It can be directly installed in the load center, maintenance-free, easy to install, low overall operating cost, low loss, good moisture-proof performance, can operate normally under 100% humidity, and can be put into operation after shutdown without pre-drying.
The cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). In natural air cooling, the transformer can run continuously for a long time under rated capacity. Forced air cooling, transformer output capacity can be increased by 50%. Suitable for intermittent overload operation, or emergency overload operation; Due to the large increase in load loss and impedance voltage during overload, it is in non-economic operation state, so it should not be kept in continuous overload operation for a long time.
Low partial discharge, low noise, strong heat dissipation capacity, 120% rated load operation under forced air cooling. Equipped with a complete temperature protection and control system, it provides a reliable guarantee for the safe operation of the transformer with high reliability.

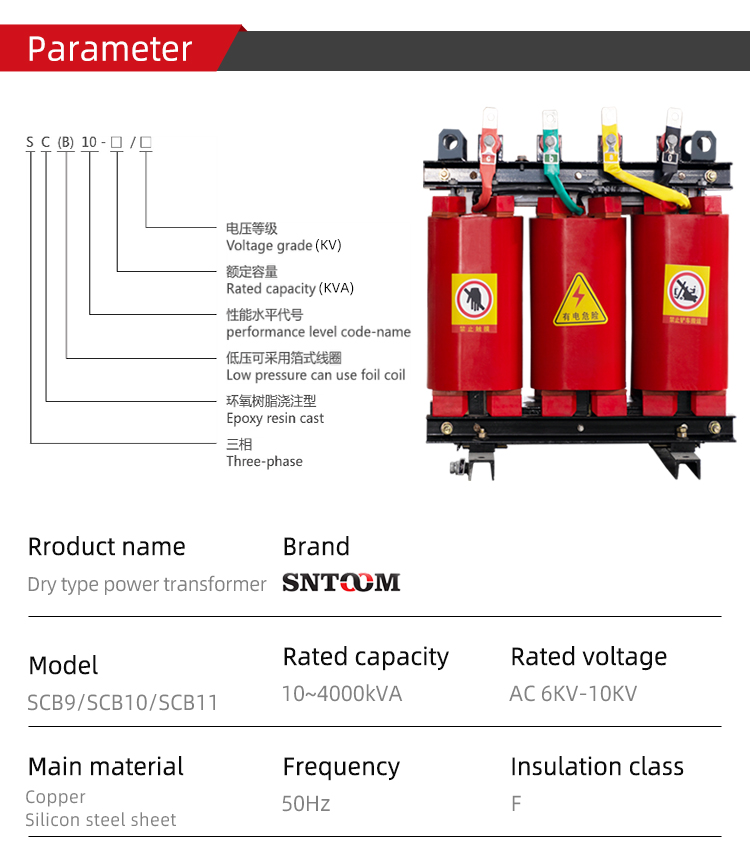

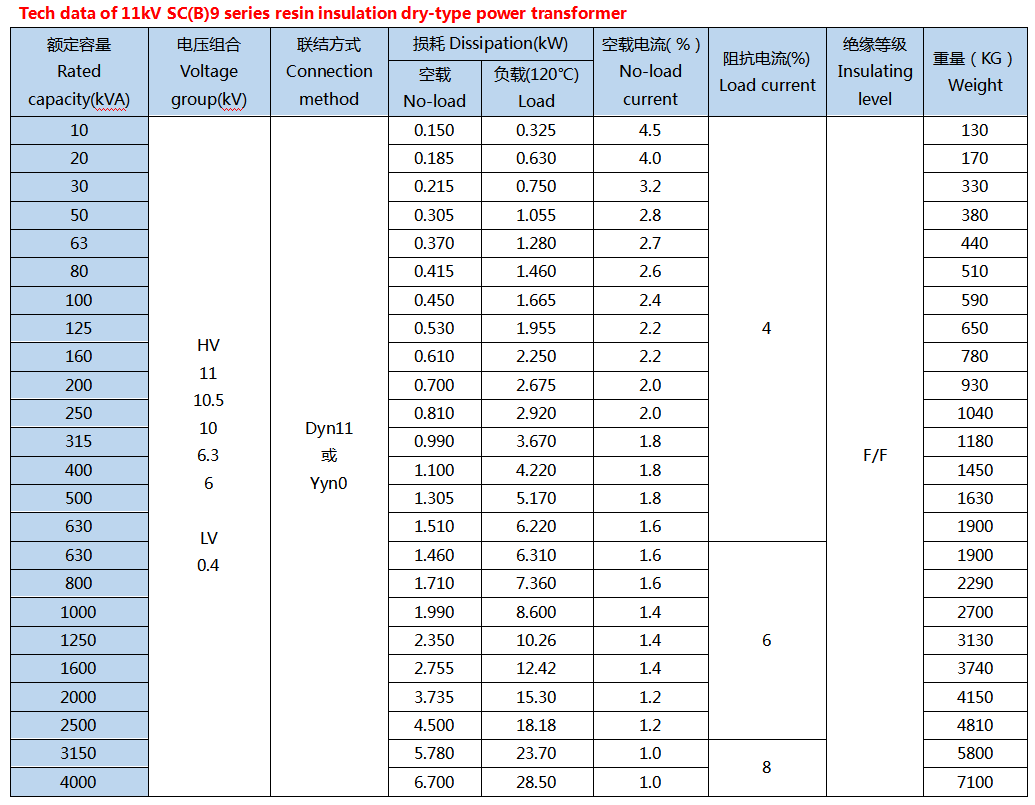

Product Parameters
| Projects | Parameters |
| Rated Capacity | 1000kVA |
| High voltage | 6 6.3 10 10.5 11KV |
| Low voltage | 0.4 KV |
| Connection symbol | Yyn0 / Dyn11 |
Impedance voltage | 6% |
Tapping range of high-voltage | ±5% ± 2 ×2.5% |
No-load Loss | 1.99kW |
Load Loss | 8.6kW |
No-load current(%) | 1.4% |
Insulating level | F/F |
Core Features & Advantages:
Eco-Friendly Design: At the heart of our 1000kVA transformer lies an eco-conscious approach. The use of epoxy resin casting eliminates the need for oil cooling, significantly reducing the risk of environmental contamination and minimizing maintenance requirements. This green solution aligns perfectly with modern sustainability goals.
Superior Insulation & Durability: The epoxy resin casting process ensures a seamless, void-free insulation system that provides exceptional electrical insulation and mechanical strength. This results in a transformer that is highly resistant to moisture, dust, and other environmental factors, ensuring long-term reliability and durability.
Compact & Lightweight: With its compact design, our 1000kVA dry transformer requires minimal installation space, making it an ideal choice for crowded urban environments or where space is at a premium. Furthermore, its lightweight construction simplifies handling and installation, reducing overall installation costs.
Efficient Heat Dissipation: The epoxy resin casting material efficiently dissipates heat generated during operation, ensuring optimal performance even under heavy load conditions. This improved thermal management enhances the transformer's lifespan and maintains consistent output quality.
Low Noise & Vibration: Our transformer is designed to operate with minimal noise and vibration, providing a quiet and unobtrusive solution for a wide range of applications. This feature is particularly beneficial in residential areas or sensitive environments where noise reduction is crucial.
Versatile Applications: Suitable for a broad spectrum of applications, including utility grids, industrial facilities, commercial buildings, and renewable energy systems, our 1000kVA eco-friendly dry transformer offers unmatched versatility and performance.
Technical Specifications:
Rated Power: 1000kVA
Insulation Material: Epoxy Resin Cast
Cooling Method: Dry-Type, Natural Air Cooling
Enclosure Type: IP23/IP30 (Optional)
Voltage Range: Customizable to meet specific requirements
Frequency: 50Hz/60Hz
Noise Level: Below IEC Standards
Efficiency: High, Meeting or Exceeding International Efficiency Standards
Conclusion:
The Epoxy Resin Cast 1000kVA Eco-Friendly Dry Transformer is the ultimate choice for those seeking a reliable, sustainable, and high-performance transformer solution. Its innovative design, superior insulation, and eco-friendly credentials make it the perfect fit for a wide range of applications, ensuring uninterrupted power supply and reduced environmental impact. Contact us today to learn more about how our transformer can transform your power distribution system.
