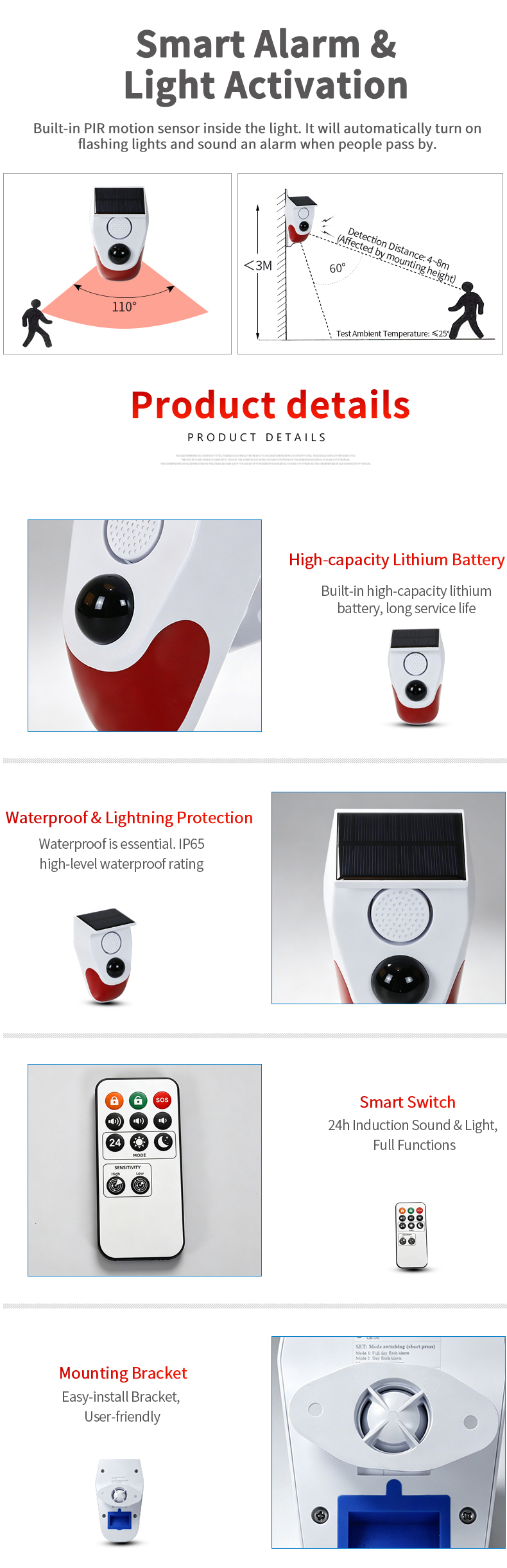

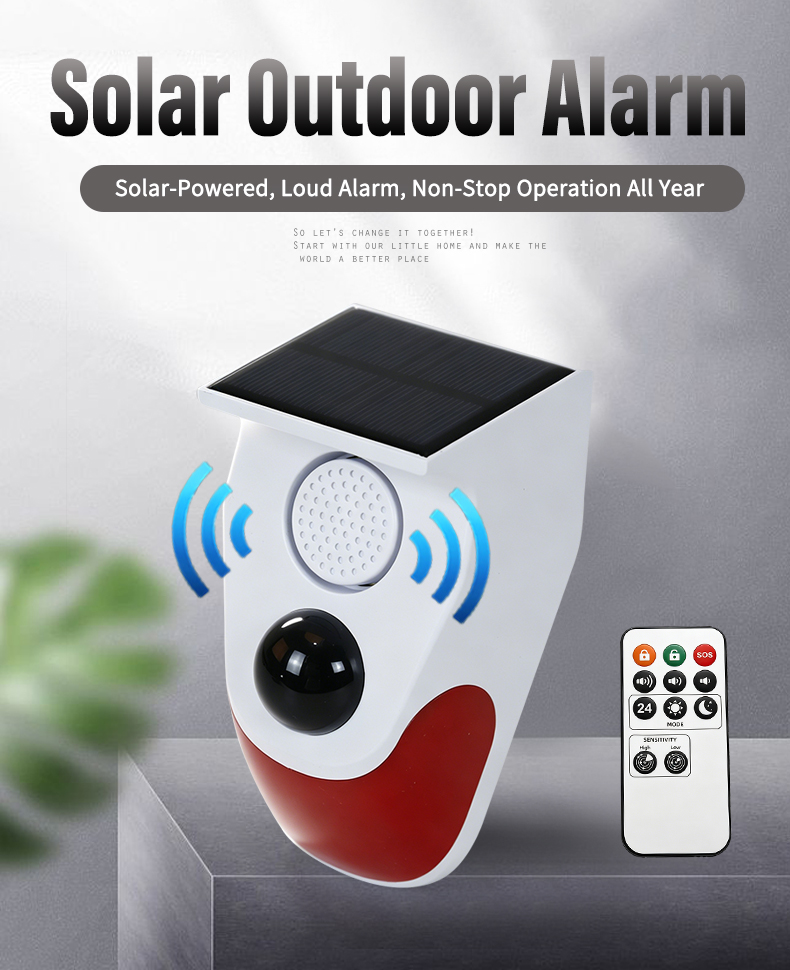

Production Advantages & Features

1. Solar & Type‑C Dual Charging

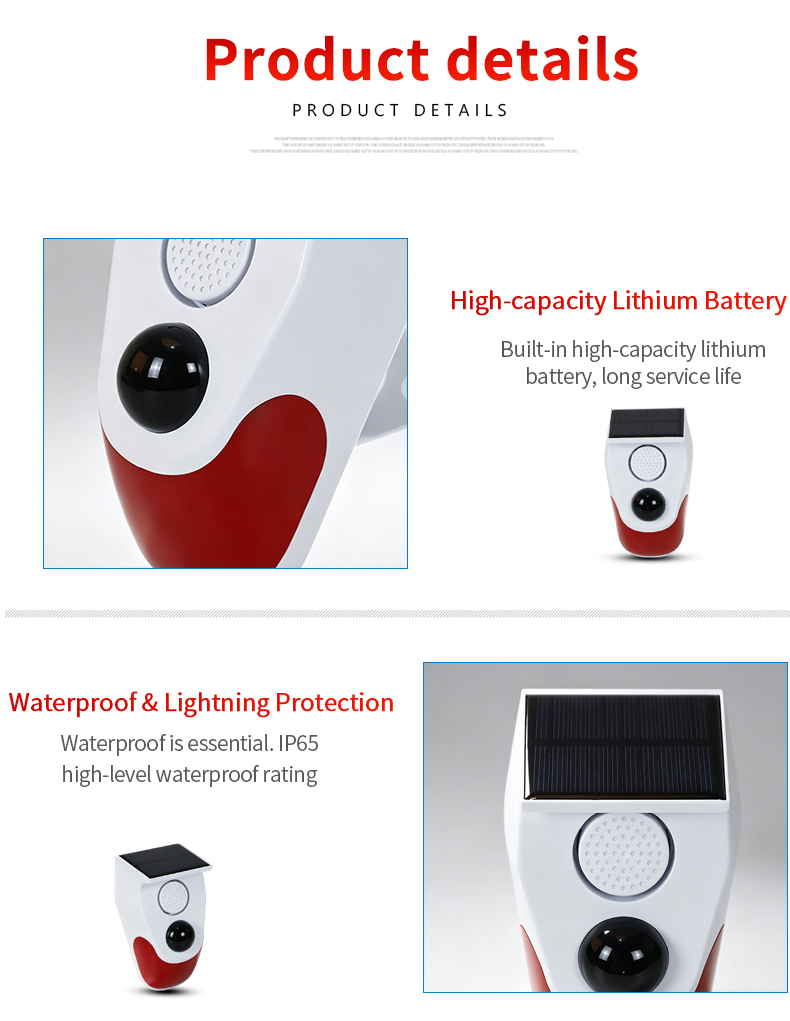

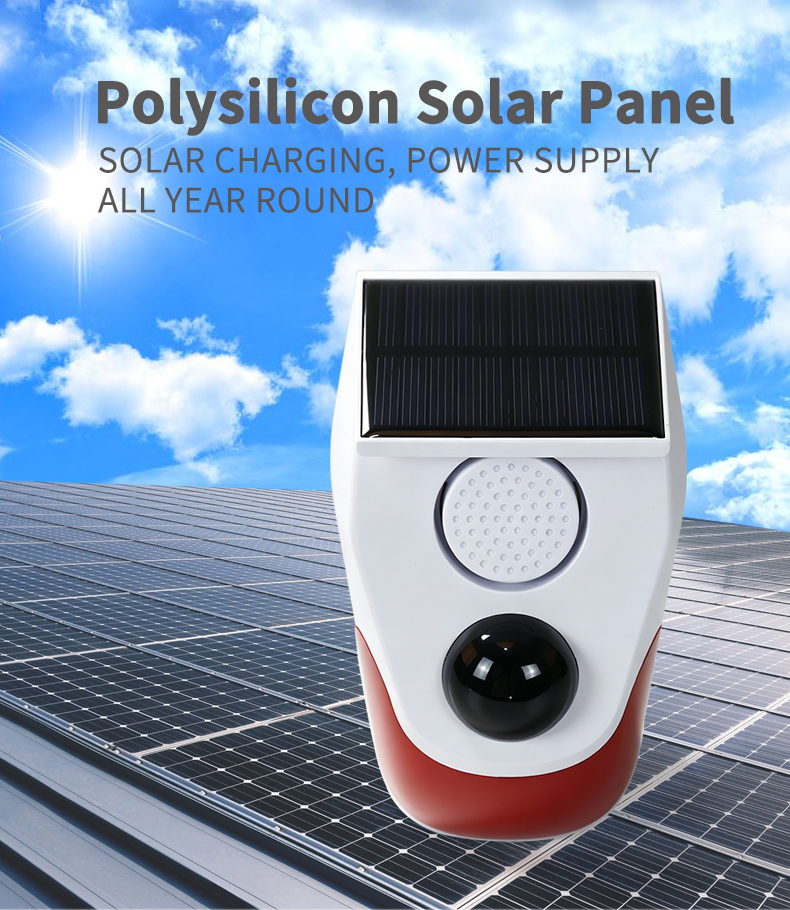

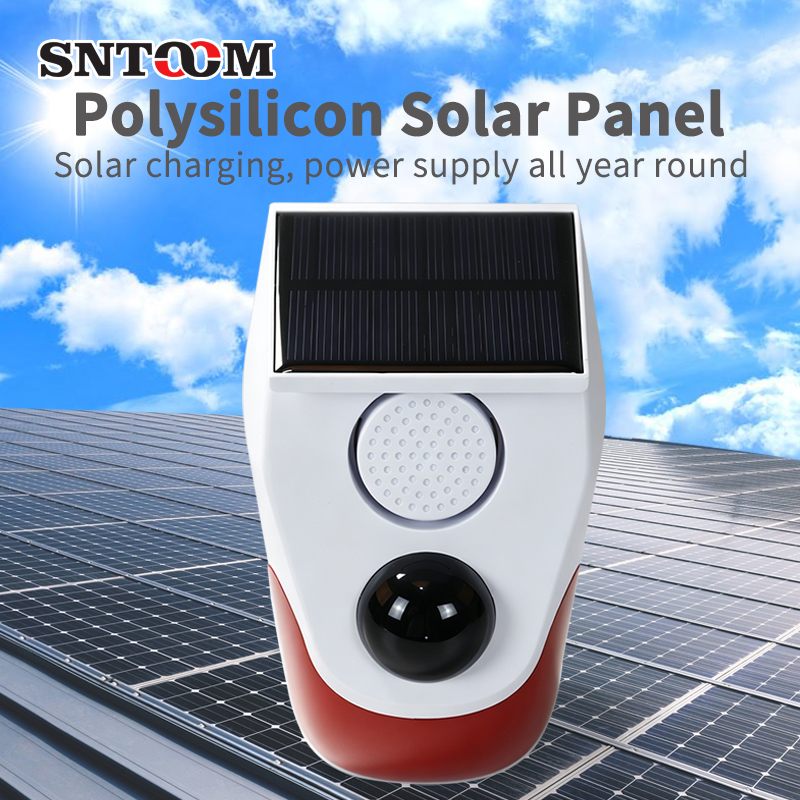

   Built‑in 800mAh 18650 rechargeable battery. Support solar panel charging and Type‑C cable backup charging, works continuously for outdoor all‑year‑round use.

2. PIR Infrared Motion Sensor Detection

   High‑sensitivity PIR sensor detects human & animal movement. Adjustable detection sensitivity with remote control.

3. 120dB Super‑loud Alarm & Multi‑sound Modes

   Max 120dB warning volume. Equipped with 6 groups of animal‑repellent audio, effective for anti‑theft and wild animal deterrence.

4. 5 High‑flash Red LED Warning Lights

   Red LED strobe flashes when triggered, combines light and sound warning for better deterrent effect.

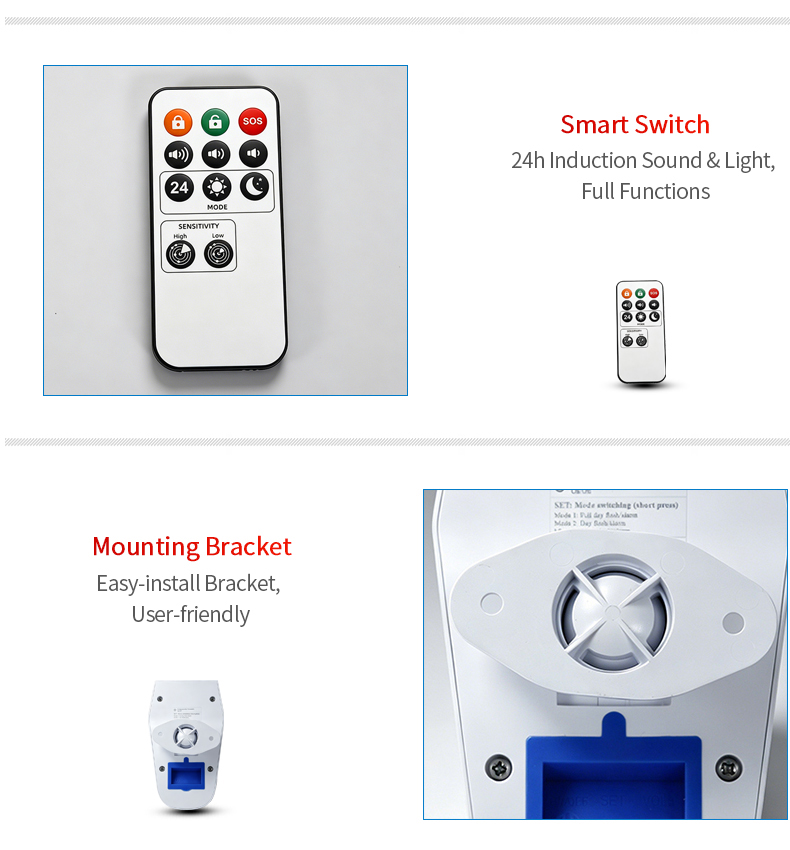

5. Remote Control Operation

   Comes with handy remote controller. Easy to switch modes, arm / disarm, trigger SOS alarm, set working time and adjust sensor sensitivity.

6. Durable ABS Housing for Outdoor Application

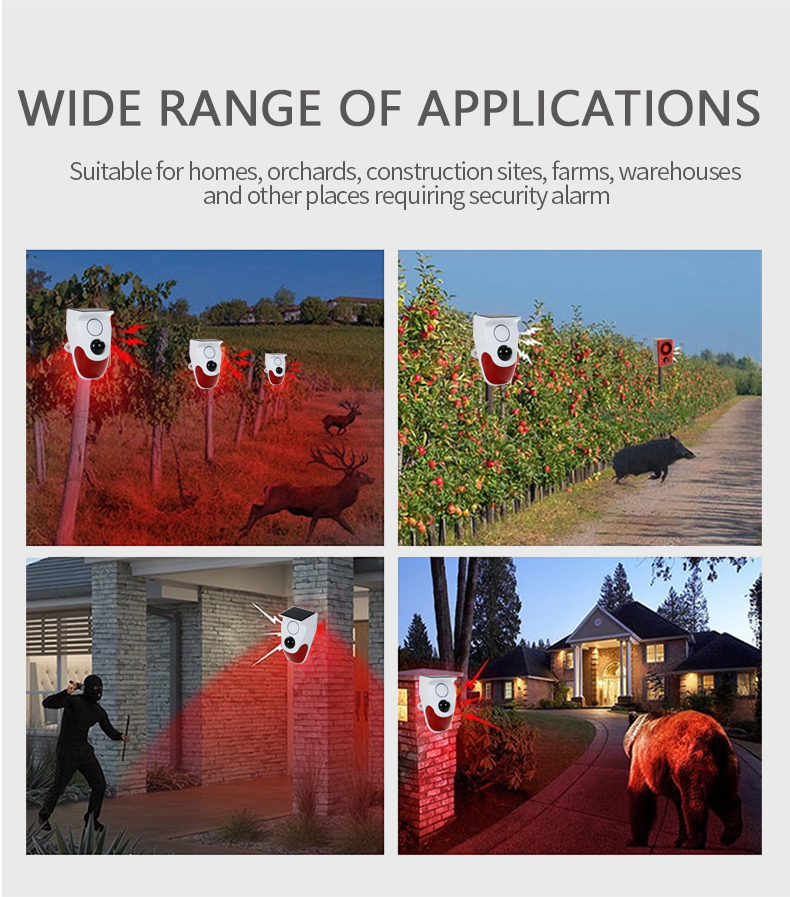

   Solid ABS plastic shell, suitable for courtyard, farm, villa, warehouse, orchard and other outdoor scenarios.

7. Easy Wall‑mount Installation

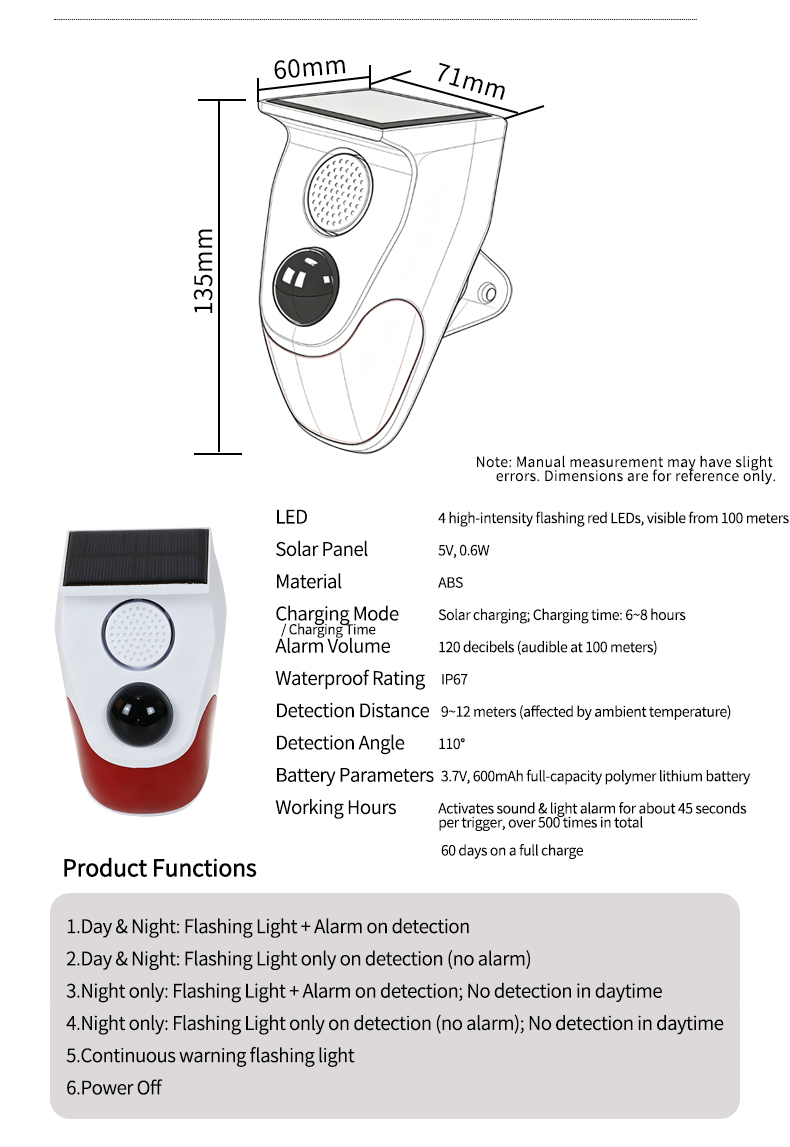

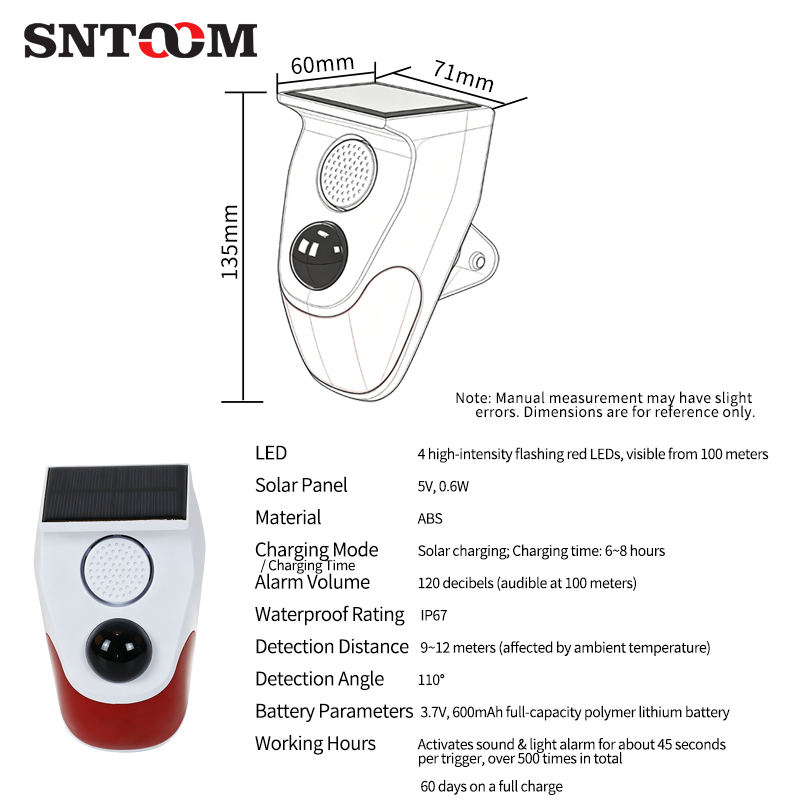

   Compact size 1357160mm, simple wall‑mount setup, no complicated wiring required.

Installation and Instruments

Included Accessories

1 × Solar PIR alarm host

1 × Remote control

1 × Wall‑mount screws set (screws and expansion plugs)

1 × User manual

️ Installation Steps

1. Select installation position

   Choose outdoor wall, pillar or fence. Suggest installation height: 2‑2.5 meters above ground. Avoid facing direct sunlight to prevent interference with PIR sensor detection.

2. Mark drilling points

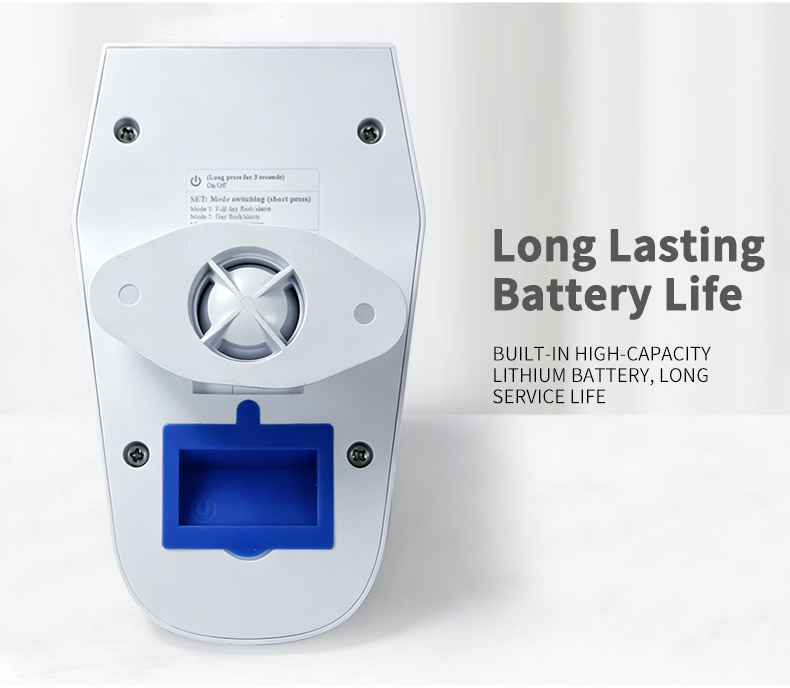

   Put the machine against the wall, mark hole positions according to the mounting holes on the back of alarm unit.

3. Drill and fix

   Drill holes on the wall, insert plastic expansion plugs, fasten the alarm device with matching screws.

4. Power‑on & remote pairing

   Turn on the power switch of the alarm. The remote control works out‑of‑the‑box, no extra pairing required. Use remote to set arm/disarm, working mode, sensitivity and timing function.

5. Test function

   Walk in front of PIR detection window to trigger alarm, verify sound & strobe light work normally.

⚠️ Installation Notes

• Install in places with sufficient sunlight for solar charging performance.

• Do not install near strong heat source or air‑condition outlet, which will affect PIR detection accuracy.

• Wall‑mount only, do not place on ground.

• Keep the solar panel surface clean regularly for better charging efficiency.
